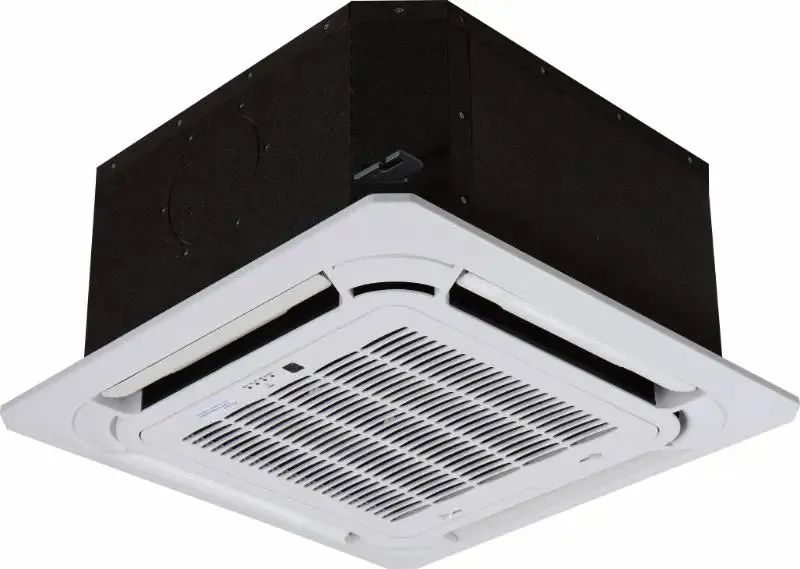

ACiQ 36,000 BTU Ceiling Cassette Mini-Split Air Handler
Mini Split systems are great, but what if you don’t want the air handler on your wall? ACiQ offers the ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution.
Features:
- 12,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote included
- Decorative Grille included
Air Handler Specifications:
| Brand | ACIQ |
| SKU | ACIQ-36CC-HH-MB / ACIQ-CC-GRILLE-24 |
| Weight (in lbs) | 69.000000 |
| Controller | Wireless Included |
| Cooling BTU | 36,000 BTU |
| Heating BTU | 40,000 BTU |
| Maximum CFM | 1041.18 |
| Decibel Level (dBA) | 52.5 max |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 50 |
| Min. Breaker Size | 41 |
| Tonnage | 3 Ton |
| System Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini-Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone, Single Zone |
| Height | 52.48 |
| Width | 37.48 |
| Depth | 16.34 |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Safety Information | PROPOSITION 65 WARNING |
